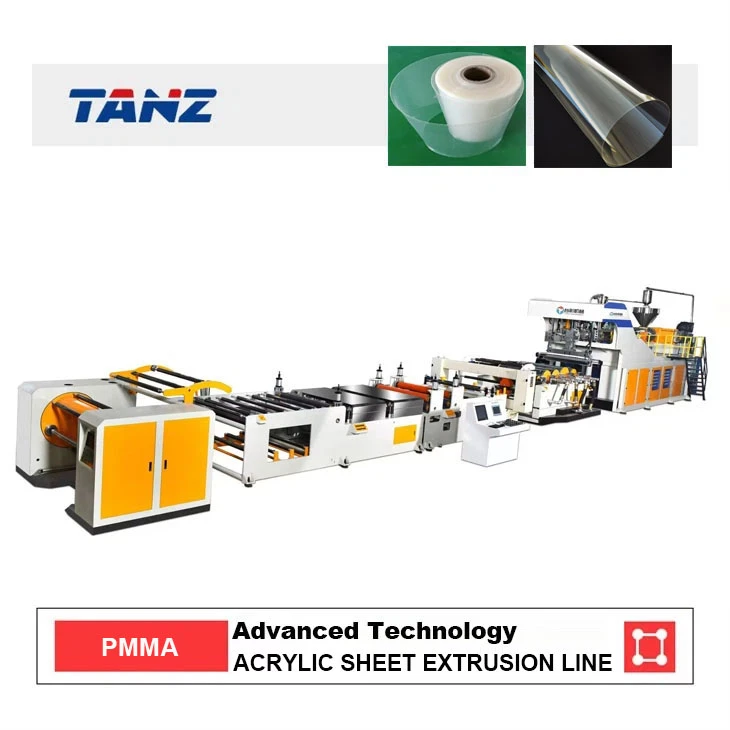

Acrylic Sheet Extrusion Line PMMA Plastic Sheet Extruder

PMMA Sheet Extrusion Line Acrylic Sheet Production Machine Single Screw Extruder

PMMA Sheet Extrusion Line the characteristics of abrasion resistance and collision resistance, and it exceeds ordinary tempered glass in terms of strength. And it also has high toughness, can be bent to more than 90 degrees, and has good processing properties. Light texture and convenient transportation. PMMA Sheet Extrusion Line.The light transmittance is high, reaching 88%. A wide range of applications, such as: gardens, playgrounds, exotic decorations and gallery rest areas; interior and exterior decoration of commercial buildings, curtain walls of modern urban buildings; aviation transparent containers, motorcycle windshields, airplanes, trains, ships, automobiles, ships, submarines and glass military and police shields; the layout of telephone booths, advertising signs, and light box advertising exhibitions; isolation barriers between highways and urban viaducts.PMMA Sheet Extrusion Line

PMMA Sheet Extruder Machine Main Technical Specification



Machine Type:Plastic Sheet Extrusion Line

Sheet Structure : Single Layer/Double Layer/Three Layer/Multi-Layer

Screw Design : Single Screw

Suitable Material : PC PMMA PET GPPS MS

Width : 600-1220mm

Thickness : 0.125-3mm

Machine Size:25-30 Meters Long

How to Tell Us Your Request of PMMA Sheet Product?

The PMMA sheet extrusion line is customized machine. We have to know your product information such as following, and then will give you our suggeation.

● Final sheet width

● Final sheet thickness

● Sheet product application

● What material will you use, recycled material, virgin      material, or mixed material?

● Capacity of the machine

DETAILED DESCRIPTION

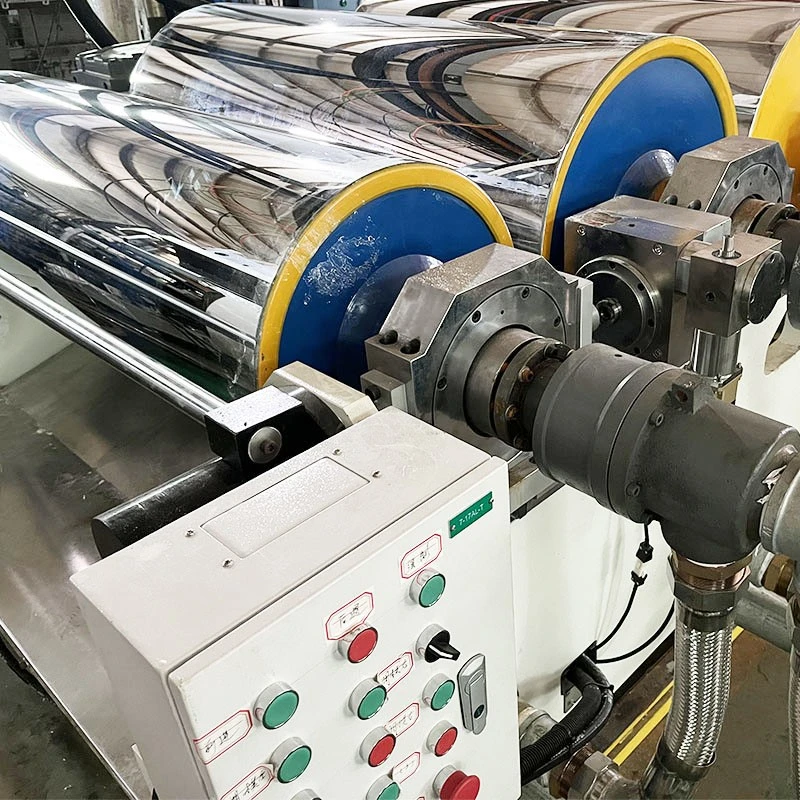

Three-roller calender

The three-roller calender is designed for horizontal, vertical or 45-degree inclination, and the slicing accuracy is as high as 0.005mm. The sheet thickness can be adjusted automatically, and the mechanical roller has anti-collision protection. Using electronic handwheel operation, conversion is quick and easy, without cumbersome operations.





Mould

The mold is made of alloy steel, and the flow channel is chrome-plated and polished. The width of the mold (sheet) can be adjusted at any time without stopping the machine.





Duplex Sheet Winder

The dual station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.

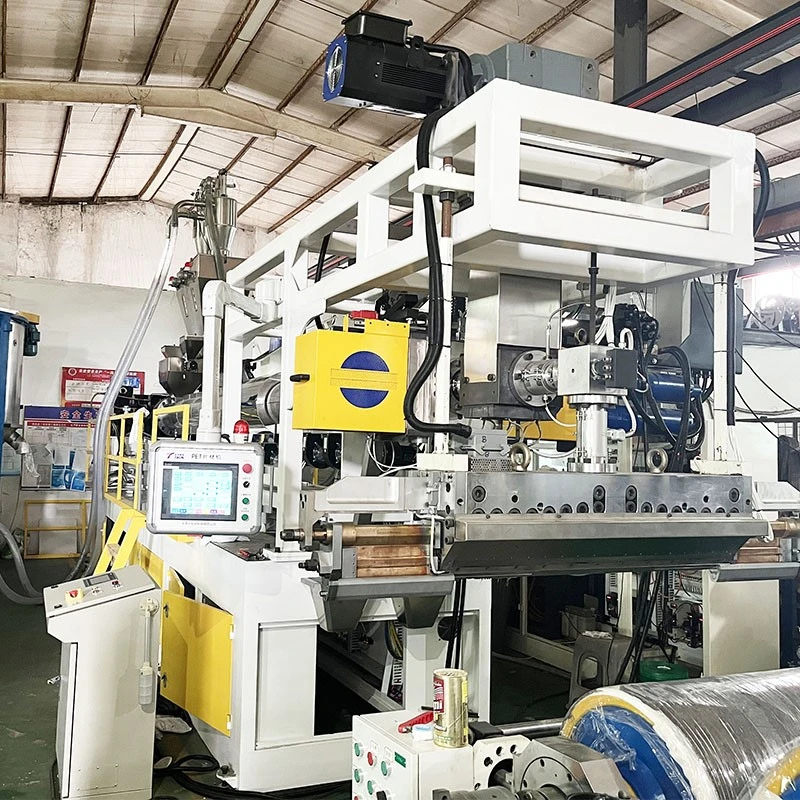

Extruders

It is derived from Taiwan's technology design free dryin and exhaust type planet type screw,which has the advantages of mandatory feeding,high speed,high production capacity , and high quality . It is suitable for 80% return,maintaining the original toughness of the original film , and it can also be suitable for PP HIPS PLA.



Dongguan Taizhang Machinery Co.,Ltd.

Dongguan Taizhang Machinery Co., Ltd. was established in 2010. For more than 28 years, we have been focusing on PET PLA PP PS PC ABS HIPS PS PC PMMA single-layer or multi-layer extrusion production lines, thermoforming multi-station machines, crushing and recycling equipment R&D, production, sales and service of other products. The products have passed EU CE certification and ISO9001 certification, and are exported to more than 80 countries and regions including Brazil, Thailand, Vietnam, Malaysia, South Korea, Chile, and the United States. The company's main products are:

1: Extrusion production line series: PET single or multi-layer co-extruded sheet line PP, PS single-layer or multi-layer co-extruded sheet line PLA environmentally friendly degradable sheet wire ABS, HIPS automotive interior panel, refrigerator panel, luggage panel production line PC, PMMA, GPPS sheet production line, plate production line PP, PE, PVC, PC board production lines, corrugated board, hollow board, and grid board production lines

2: Blister thermoforming series: High speed blister machine Thermoforming multi-station machine

3: Crushing recycling series: silent crusher





Who Are We?



TANZ focuses on the design and production of sheet extruders and blister forming machines

China Taizhang Machinery Co., Ltd. was established in 2010. It is a high-tech enterprise specializing in manufacturing plastic packaging blister forming machines/crushers/plastic sheet production lines. The company now has a production base with a total construction area of ​​more than 4,000 square meters. Nearly 200 employees are working hard for TANZ, which has more than 15 years of machinery production experience and the ability to produce 200+ various extrusion production lines and plastic vacuum forming equipment annually.

In recent years, the company's products have been used by customers all over the country and exported to the United States, Germany, Japan, Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, South America and other countries and regions.
