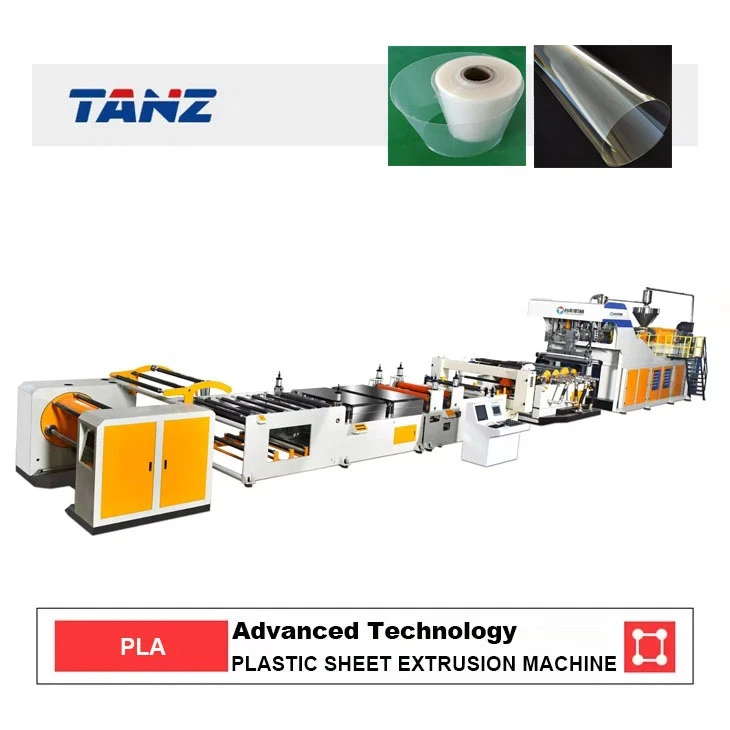

PLA Sheet Extrusion Line Plastic Parallel Twin Screw Extruder Machine
PRODUCT DESCRIPTION
WHAT IS PLA & SCOPE OF APPLICATION
PLA is a new biodegradable material made from starch raw materials derived from renewable plant resources (such as corn). The starch raw material is saccharified to obtain glucose, which is then fermented with glucose and a certain strain of bacteria to produce high-purity lactic acid, and then polylactic acid with a certain molecular weight is synthesized through chemical synthesis. It has good biodegradability and can be completely degraded by microorganisms in nature after use, eventually generating carbon dioxide and water without polluting the environment. This is very beneficial to protecting the environment and is a recognized environmentally friendly material.

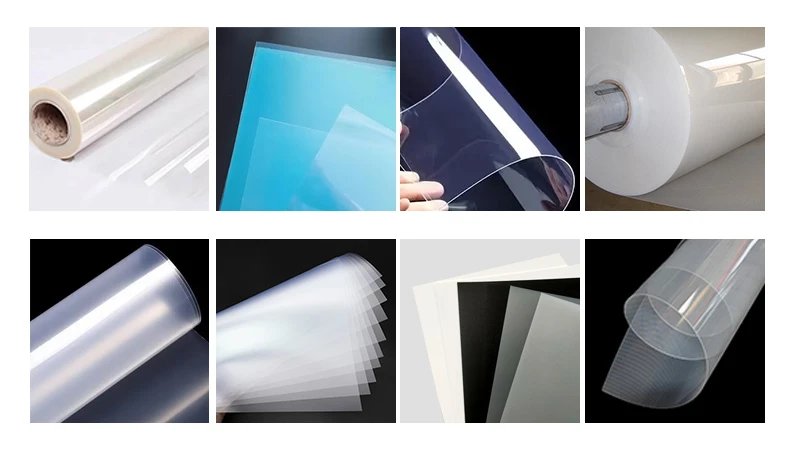

PLA sheet product can be used in rigid package of vegetables, fruit packages, egg tray and baked goods, packages of daily chemical products, also can be used for cups, anf other packages like fresh food.

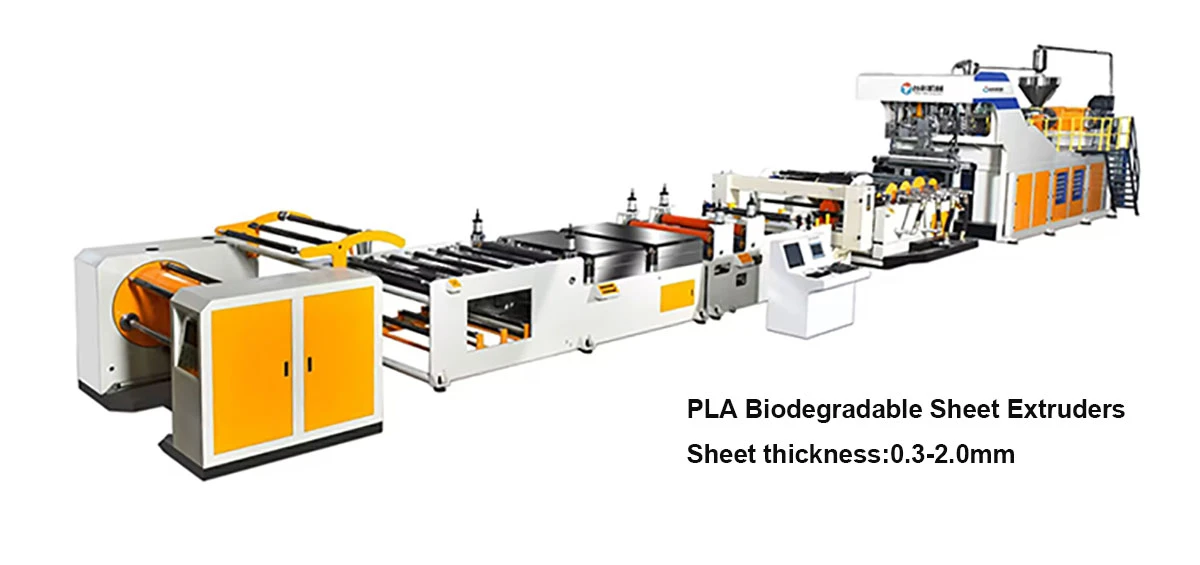

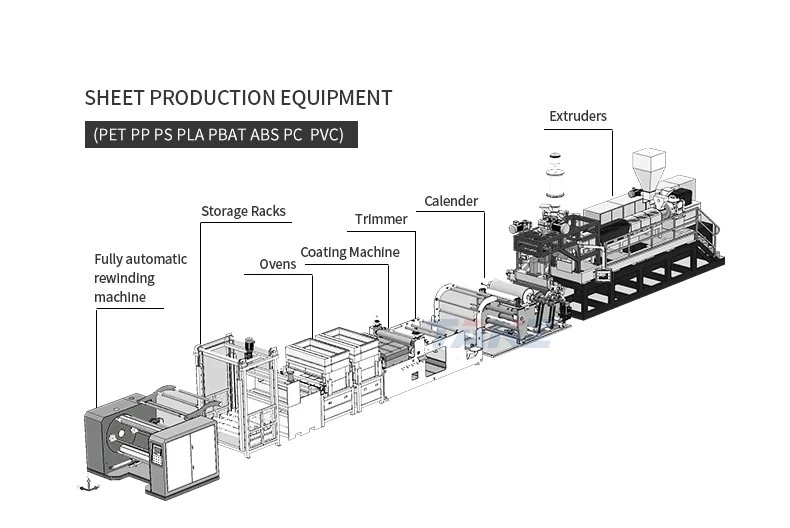

PLA SHEET EXTRUSION MACHINE
The PLA sheet extrusion line is customized machine. We have to know your product information such as following, and then will give you our suggeation.
● Final sheet width
● Final sheet thickness
● Sheet product application
● What material will you use, recycled material, virgin material, or mixed material?
● Capacity of the machine
VIDEO SHOWCASE
SCOPE OF APPLICATION
PRODUCT PARAMETER
|
Model/Parameters |
Adapt to materials |
Screw specifications |
Sheet thickness (mm) |
Sheet width |
Maximum extrusion output (kg/h) |
Installed capacity(KW) |
| TZ105-1200 | PP/PS/PE | Φ105 | 0.3-2.0 | ⩽850 | PP:350KG PS:400KG | 210 |
| TZ120-1200 | PP/PS/PE | Φ120 | 0.3-2.0 | ⩽850 | PP:450KG PS:550KG | 250 |
| TZ135-1200 | PP/PS/PE | Φ135 | 0.3-2.0 | ⩽850 | PP:800KG PS:900KG | 435 |
| TZ120H-1200 | PP/PS/PE | Φ120 | 0.3-2.0 | ⩽850 | PP:550KG PS:600KG | 320 |
| TZ150P-1200 | PP/PS/PE | Φ150 | 0.3-2.0 | ⩽850 | PP:850KG PS:900KG | 460 |
| TZ120P-1200 | PET/PLA/KPS | Φ120 | 0.16-2.0 | ⩽800 | 550-650KG | 310 |
| TZ120P/65P-1200 | PET/PLA/KPS | Φ65 Φ70 | 0.16-2.0 | ⩽800 | 800-1000KG | 365 |
DETAILED DESCRIPTION

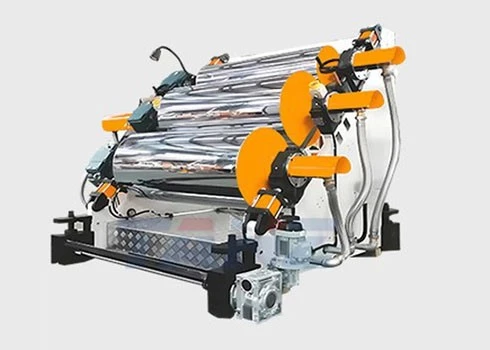

The three-roller calender is designed for horizontal, vertical or 45-degree inclination, and the slicing accuracy is as high as 0.005mm. The sheet thickness can be adjusted automatically, and the mechanical roller has anti-collision protection. Using electronic handwheel operation, conversion is quick and easy, without cumbersome operations.

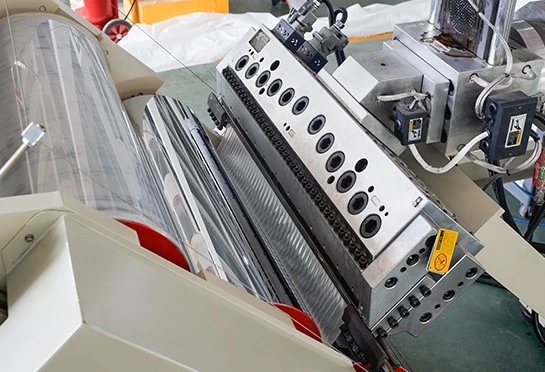

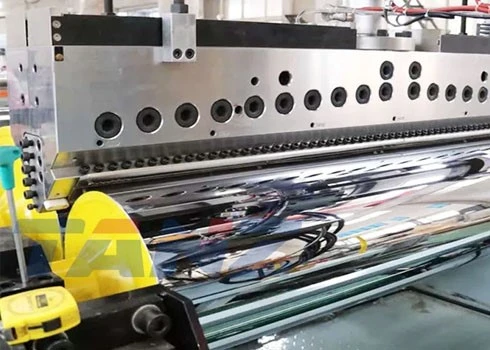

The mold is made of alloy steel, and the flow channel is chrome-plated and polished. The width of the mold (sheet) can be adjusted at any time without stopping the machine.

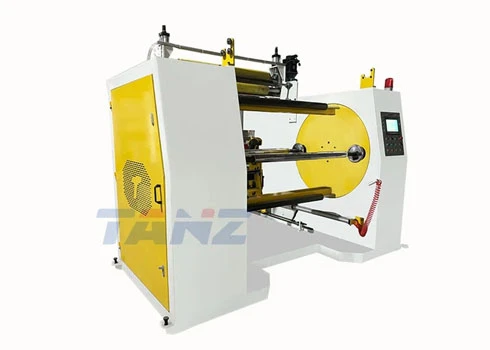

The dual station winding machine is equipped with automatic meter meter , You can also customize a larger volume weight , and the larger diameter can be collected by 1.15 meters . It also specially developed an automatic winding machine that can collect 2 rolls at the same time to achieve high production capacity.

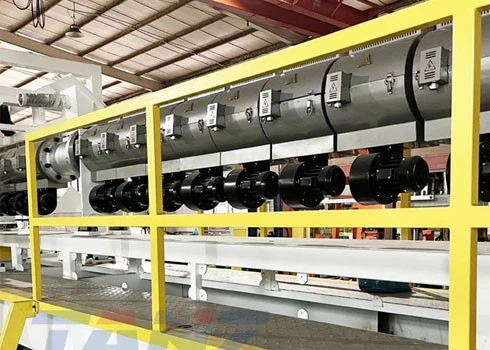

It is derived from Taiwan's technology design free dryin and exhaust type planet type screw,which has the advantages of mandatory feeding,high speed,high production capacity , and high quality . It is suitable for 80% return,maintaining the original toughness of the original film , and it can also be suitable for PP HIPS PLA.
Taizhang Produciton Line Solution
COMPANY PROFILE
Dongguan Taizhang Machinery Co., Ltd. was established in 2010. For more than 28 years, we have been focusing on PET PLA PP PS PC ABS HIPS PS PC PMMA single-layer or multi-layer extrusion production lines, thermoforming multi-station machines, crushing and recycling equipment R&D, production, sales and service of other products. The products have passed EU CE certification and ISO9001 certification, and are exported to more than 80 countries and regions including Brazil, Thailand, Vietnam, Malaysia, South Korea, Chile, and the United States. The company's main products are:
1: Extrusion production line series: PET single or multi-layer co-extruded sheet line PP, PS single-layer or multi-layer co-extruded sheet line PLA environmentally friendly degradable sheet wire ABS, HIPS automotive interior panel, refrigerator panel, luggage panel production line PC, PMMA, GPPS sheet production line, plate production line PP, PE, PVC, PC board production lines, corrugated board, hollow board, and grid board production lines
2: Blister thermoforming series: High speed blister machine Thermoforming multi-station machine
3: Crushing recycling series: silent crusher
CERTIFICATES OBTAINED
Who Are We?
TANZ focuses on the design and production of sheet extruders and blister forming machines
China Taizhang Machinery Co., Ltd. was established in 2010. It is a high-tech enterprise specializing in manufacturing plastic packaging blister forming machines/crushers/plastic sheet production lines. The company now has a production base with a total construction area of more than 4,000 square meters. Nearly 200 employees are working hard for TANZ, which has more than 15 years of machinery production experience and the ability to produce 200+ various extrusion production lines and plastic vacuum forming equipment annually.
In recent years, the company's products have been used by customers all over the country and exported to the United States, Germany, Japan, Russia, Spain, Turkey, Iran, South Korea, Indonesia, India, South America and other countries and regions.
FAQ
Q: What is the main business of TANZ?
Q: Can I visit your factory?
Q: What are the services for purchasing equipment at TANZ?
Q: What is PET Sheet Extrusion Line?
Q: Where does TANZ ship from?
Q: Will TANZ arrange professional technicians to install and debug equipment?
Q: How long is the delivery time after placing an order?
Q: In order to estimate shipping costs, I would like to know the weight of the machine?
Q: What is the process of PET sheet extrusion?
