Fully Automatic Blister Cup Making Machine Cup Making Machine Cup Machine Disposable Plastic Cup Machine

The molding area of this machine can reach 750*480mm, and the maximum depth can reach 180mm. This depth can be used for plastic milk tea cups, coffee cups, disposable water cups, etc. Adjusting the depth can also produce plastic boxes, such as: takeaway fast food boxes, fresh food trays, egg trays, fruit boxes, plastic lids, etc.

Send Inquiry

Product Introduction

Plastic Full Automatic Cup Making Machine:

Feature description:

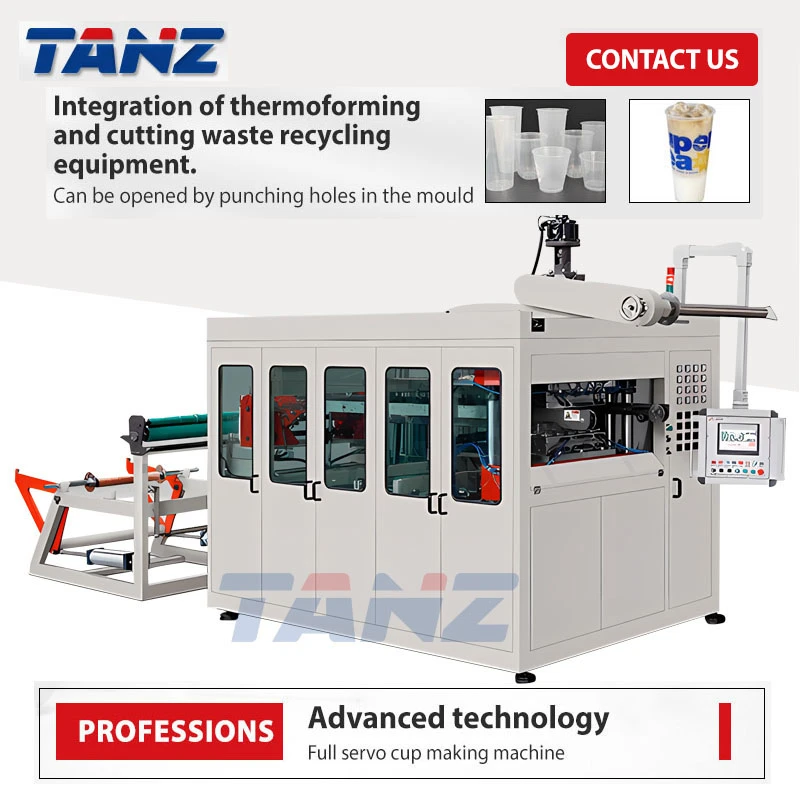

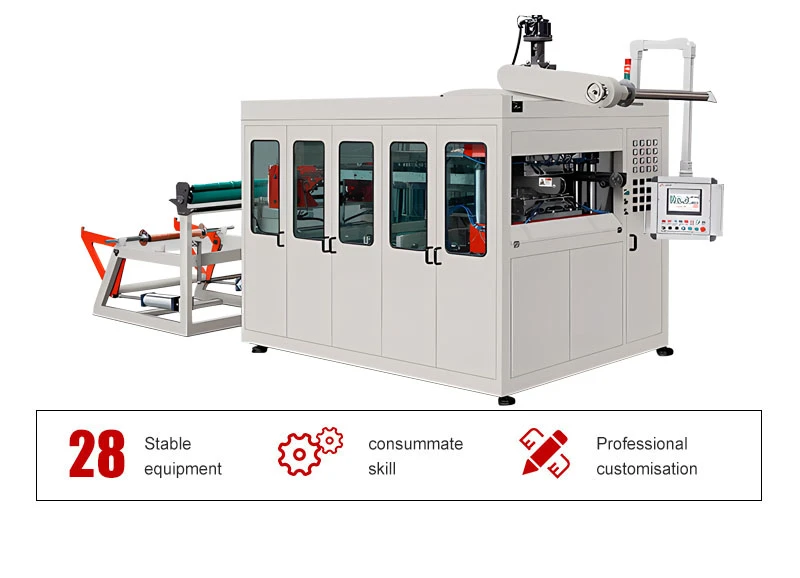

TANZ-730 fully automatic cup cover and bowl machine is suitable for molding PP, PS, HIPS, PVC, PET, PLA and other plastic sheets to produce various cups, bowls, dishes, lids, boxes, etc. Products such as: milk cups, jelly cups, disposable drink cups, instant noodle bowls. The production process is to heat the plastic sheets to a certain temperature, use positive pressure to form the cups, and then transport them to the cup stacking machine by the flipping device for automatic stacking, counting, and neat pushing out.

Machine performance characteristics:

1. This machine is controlled by PLC and uses a touch screen.

2. Use servo motors on the film feeding device and stretching device.

3. The fully automatic function of this machine can help plastic product manufacturers save manpower and reduce production costs.

4. The speed of this machine can be applied to advanced production lines.

5. The equipment has a mold memory function and can record and save product temperature adjustment data.

1	Molding method: positive pressure molding
2	Mold area: length 350-450mm / width 450-750mm
3	Adaptable materials: PP PS PET PVC, etc.
4	Material maximum and minimum thickness: 0.3-2.2mm
5	Material : PP PS PET PVC etc.
6	Total power : installed capacity 180KW (maximum power)
7	Upper stretching station : Huichuan servo 7.5KW
8	Lower molding station: Huichuan servo 15KW
9	Feeder:5.5K\ Servo Huichuan Puller
10	Operating system:"Huichuan" 15-inch color touch screen
11	Magnetic valves, water and oil seals: Japan "CKD".
12	Heating Brick: Germany Heating Brick "Elstein 9kHNNAN a section of the South Central 9 into the number of thecountry0 hours mm friend column surface marking
13	The main electrical equipment configuration: Huichuan servo, Japan Fuji
14	Cooling method: one chiller, 10HP (compressor "Japan Panasonic or" U.S. "Copeland")
15	Adoptag PLc poogpmnile coaaml mlhn- mschne imece"inicman'[s imchcolorioucdh scen apcrang ssem, this syem anpealy enhance the stabilny and reactiom peed ol wams actiodt pracesscs
16	With 1000 sets of memory function, can store the production data of the product, so that the next time the productionof the old data can be transferred to production.
17	Partial Cylinder: Cylinders Zhi Cheng
18	Relay: France "Schneider"
19	Air switches, contactors, travel switches: Japan "Fuji Fuji"
20	Main frame: steel plate, angle iron, pig iron, stainless steel for domestic production
21	Chain:Dongfeng
22	Rail: main body aluminum profile, chain bracket 45# steel, cover plate 304 stainless steel combination
23	Vorkstation automatic oiling pump lubrication
24	Maximum power consumption of the whole machine,180K, actual power consumption is about 80KW, Voltage:380V50HZ
25	Equipment size: the whole machine is about 6.2 meters long, 1.8 meters wide, 3,2 meters high and weighs about 8tons.

Main products:

Plastic Extrusion Line/PLA/PET/PP/PE/PS/ABS/APET, PETG, CPET sheet production line, PC, PMMA
optical sheet production line, ABS, HIPS single-layer, multi-layer sheet production line, plastic
absorbing machine, cup making machine , plastic machinery, etc.
