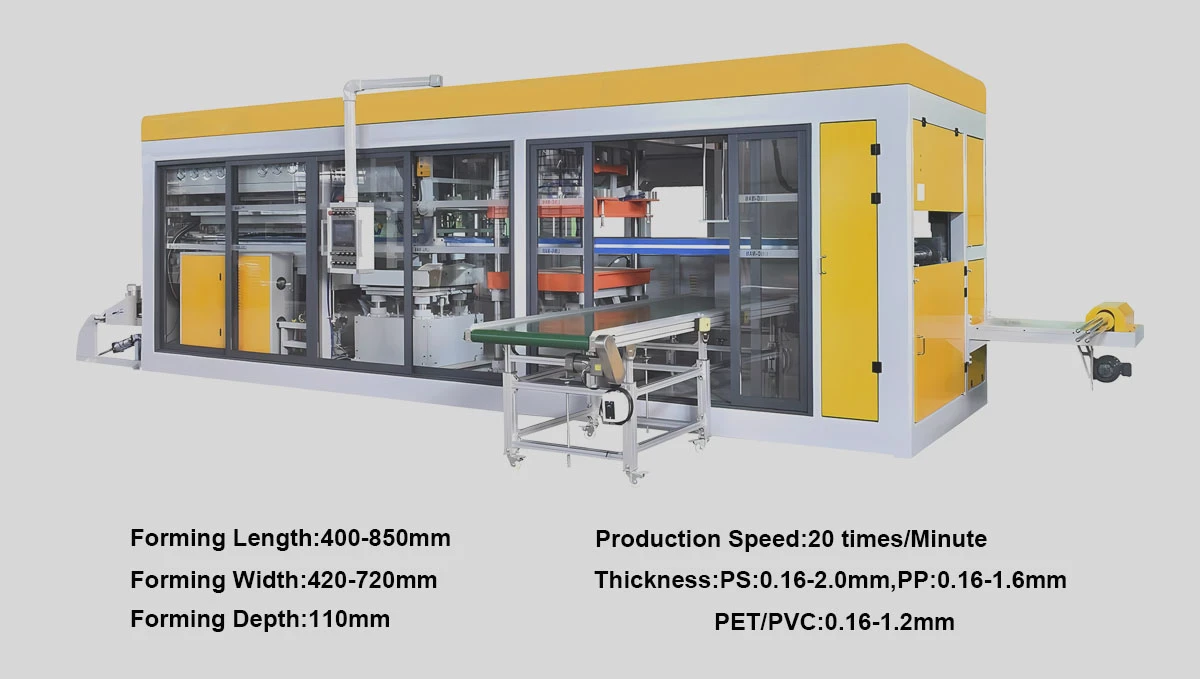

Fully Automatic Three-Station Negative And Positive Pressure Thermoforming Machine

Name: China Fully Automatic Three-Station Negative And Positive Pressure Thermoforming Machine Manufacturers Suppliers Factory - Taizhang Machinery
Brand: Taizhang
SKU: 247149979

Intelligent temperature control: fast heating. Heat up to the preset temperature within 2 minutes at room temperature and maintain stability, saving about 25% electricity compared to traditional temperature control. (Patent Technology)

Send Inquiry

Product Introduction

negative pressure plastic sheet forming machine

Fully Automatic Three-Station Negative And Positive Pressure Thermoforming Machine

FUNCTIONAL FEATURE:

1,Full servo drive, no noise, no vibration, good thermal forming, fast speed.

2,The automatic discharge device of the furnace can be lowered at any time during the production process, without breaking the plate and wasting materials.

3,The electric furnace temperature control system adopts intelligent automatic compensation control and a one-time control regulator, which is easy to adjust the temperature evenly, is easy to use, easy to operate, and heats up quickly. It can bake low-temperature slices up and down three times in the oven.

4,Forming and slitting mold servo drive, with bi-directional adjustable upper and lower mold travel, and electrically adjustable upper mold closing direction. In the closed mode, the height and position of the upper and lower molds can be easily and quickly adjusted; The direction of the lower mold closing is easy to approach and buffer, improving the closing speed and avoiding vibration.

5,PLC automatic cutting, automatic counting, and automatic transmission.

6.Effortless, only 1-2 workers need to pack.

three-station thermofroming machine

APPLICATION:

1,It is suitable for forming thermoplastic materials with a thickness of 0.15-2.0mm, such as PS HIPS, PVC, PET, PP, PE, PS, KPS, GPET, ABS, etc., and can process high transparency, high tensile, round, square, irregular, up and down two-way tensile, and flanging products.

2. Electronics: turnover pallets for semi-finished electronic product production lines, cost packaging for electronic products, etc.

3. Food category: frozen food packaging trays, ice cream lids, ice cream boxes, food packaging trays, fast food boxes, plates, coffee beverage cup lids, cooked food packaging boxes, etc.

4. Fruits and vegetables: fresh food packaging trays, fruit packaging boxes, etc.

5. Pharmaceutical products: Injection trays, solid drug trays, bottle trays, etc.

6. Electrical appliances: refrigerator lining, electrical vacuum molding accessories, small electrical appliance packaging, etc.

6. Tool category: tool finished product packaging, etc.

7. Alcohol: Fixed trays for bottle packaging, etc.

8. Agriculture: Flower pots, seedling trays, etc.

Video Show:

SCOPE OF APPLICATION:

APPLICATION 1200

RRODUCT PARAMETER:

Name	Specifications	Remarks
Forming length	400mm-850mm
Forming width	420mm-720mm
Forming Depth	0-110mm
Minimum and maximum thickness of material	PS:0.16-2.0mm PP:0.16-1.6mm PET/PVC:0.16-1.2mm
Using voltage	380V 3N 50HZ	Three-phase four-wire 50HZ
Electric furnace rated voltage	30KW	Max 40-50KW
Production speed	3 seconds/mold	20 mold/minute
Maximum punching pressure	50tons
Maximum cutting pressure	50tons
Molding machine withstands maximum pressure	55tons
Electric furnace heating area	870mm*750mm	84pcs heating bricks for upper and lower furnaces
Machine host size	Length 6500mm * Width 2150mm * Height 2800mm	Three stations (forming, punching, stacking)
Overall length of the machine	8800mm	Host, feeder, roll scrap machine
Total machine weight	9tons	Host, feeder, roll scrap machine

PRODUCTION PROCESS:

Product-process

RELATIVE MACHINE:

FAQ:

Q: What is Foreign Trade-Express?

A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.

Q: What is the main business of TANZ?

A: TANZ specializes in the production of PET PP PS ABS PLA sheet extrusion lines (single screw and twin screw), high-speed molding machines, fully automatic negative pressure molding machines, fully automatic negative pressure molding machines, cup making machines, plastic waste crushers, etc.

Q: Can I visit your factory?

A: Of course! our machines are sold all over the world and have received praise from many customers. At the same time, many foreign customers come to visit our factory. We are happy to conduct business discussions with all customers.

Q: What are the services for purchasing equipment at TANZ?

A: Test the machine before and after delivery, assist customers in installing equipment on site, and provide equipment usage training;Provide recipes, technology and resources. Equipment remote diagnosis and maintenance system, we have experienced technicians ready to assist in maintenance;One-year warranty and lifetime maintenance (except for man-made damage and natural damage);We support door-to-door maintenance.

Q: What thermoforming machine do you want?

A: Based on customers' requrements of material, products and produciton capacity, Taizhang provides different thermoforming solution. Such as three-station negative pressure thermoforming machine, three-station positive and negative thermoforming machine, four station negative pressure thermoforming machine, four-station positive and negative thermoforming machine, three-heating-area thermoforming machine, five-heating-area thermoforming machine,fully automatic thermoforming machine, semi-automatic thermoforming machine, etc.

Q: Where does TANZ ship from?

A: The TANZ factory is located in Chashan, Dongguan, Guangdong, China, and the shipping port is Shenzhen

Q: Will TANZ arrange professional technicians to install and debug equipment?

A: TANZ will assign 1-2 technical engineers to the customer's workshop to guide the installation and testing of the plastic sheet extruder and thermoforming machine.

Q: How long is the delivery time after placing an order?

A: After the customer confirms the order and pays the deposit, the lead time of the sheet machine is 3 months/unit, the lead time of the thermoforming machine is 2 months/unit, and the lead time of the crusher is 20 days/unit.(Special situations can be handled specially).

Q: In order to estimate shipping costs, I would like to know the weight of the machine?

A: Will send packing list after we confrim thermoforming machine solution for customers to extimate the shipping cost.

Q: What is the process of thermoforming machine

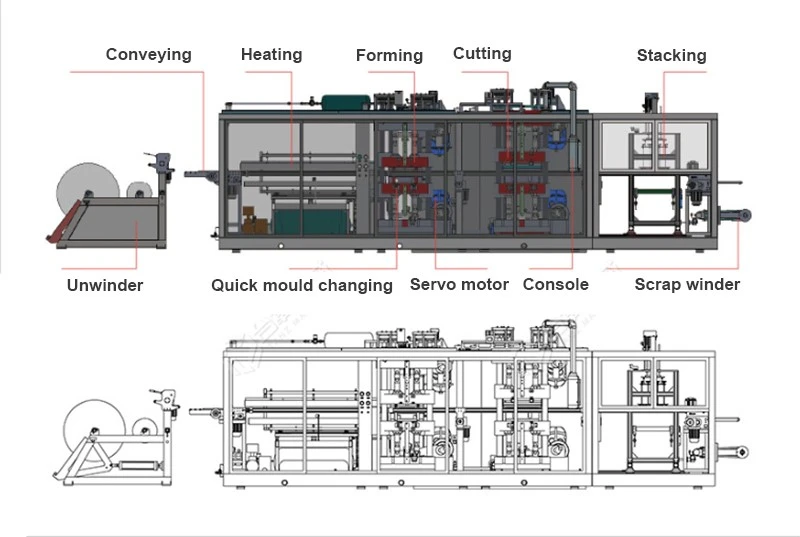

A: Three-station thermoforming machine: unwinding-conveying-heating-forming-cutting-stacking-scrap winding; four-station thermoforming machine:unwinding-conveying-heating-forming-hole punching-cutting-stacking-scrap winding.
