Factory PET Fully Automatic Blister Vacuum Forming Machine

POSITIVE AND NEGATIVE PRESSURE PLASTIC VACUUM FORMING MACHINE

1.Fully -automatic disposable food container manufacturing machine is the largest formation area developed by Taizhang Machinery.
The molding area can reach 850mm*720mm,
The maximum depth of the products that can be made is 135mm, and the thickness of the board can be 0.2mm-2mm.
The molding speed is higher.
The device also collects materials, heating, molding, punching, cutting, palletizing, and waste recycling. Driven by the servo motor.
28 years of production experience, the equipment is more stable, efficient, and can safely produce!

2.In-mold punching and cutting(two stations) Shift-mould punching(three stations) Shift-mould punching and cutting(four stations) Punching function:fully automatic punching Indentation function : accurate indentation line,crease line anti-fatigue long life, no breakage Equipment structure is tightly constructed and compact, small footprint Reduced product spacing, material saving Solution of pure transparent PP moulding, solution of the problem of cold punching and cutting rupture of CPET PLA BOPS does not produce plastic powder, burr automatic punching and cutting ,stacking and counting, robotic gripping, automatic conveying and automatic loading 400KG only need 1-2 works to pack.

Suitable sheet materials:

PP, transparent PP, PE, PS, HIPS, KPS, PVC, PET, GPET, ABS, and all other heat formed processed sheet materials.

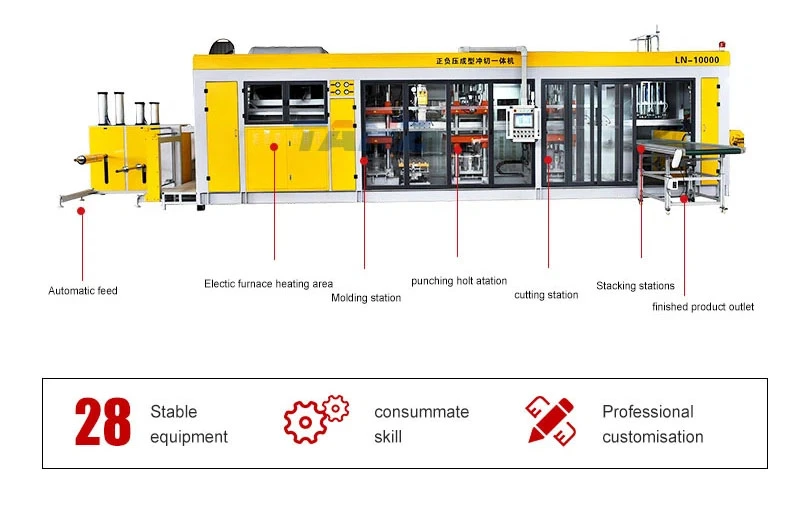

Equipment operation overview
1. The sheet material enters the automatic feeding system through the automatic feeding system.
2. The feeding amount of the sheet is controlled by the photoelectric switch, and it enters the oven through the automatic feeding chain track.
3. The sheet material enters the (first station) forming system after being heated by the automatic feeding chain track in the oven, and the positive and negative pressure forming process is completed by cooling and forming in the mold.
4. The formed sheet material enters the (second station) punching system through the automatic feeding chain track to complete the product punching.
5. After punching, the sheet material enters the (third station) punching system through the automatic feeding chain rail to complete the product punching.
6. After punching, the sheet material enters the (fourth station) stacking system through the automatic feeding chain track to complete the stacking of products. The waste enters the waste automatic winding system through the automatic feeding chain track, completing the waste winding.
7. The stacked products are automatically grabbed by the robotic arm and fed into the conveying system, entering the packaging station, and then packaged into the box.

Features:
1. In mold punching (two stations), moving mold punching (three stations), moving mold punching (four stations)
2. Punching function: fully automatic punching
3. Indentation function: The indentation line is precise, and the crease line has a long fatigue life and does not break
4. The equipment structure is compact and compact, with a small footprint
5. Reduce product spacing and save materials
6. Solve the problem of pure transparent PP molding and cold punching and cutting fracture of CPET PLA BOPS
7. No plastic powder or burrs generated
8. Automatic punching, stacking counting, mechanical arm grabbing, and automatic conveying
9. Automatic feeding 400KG
