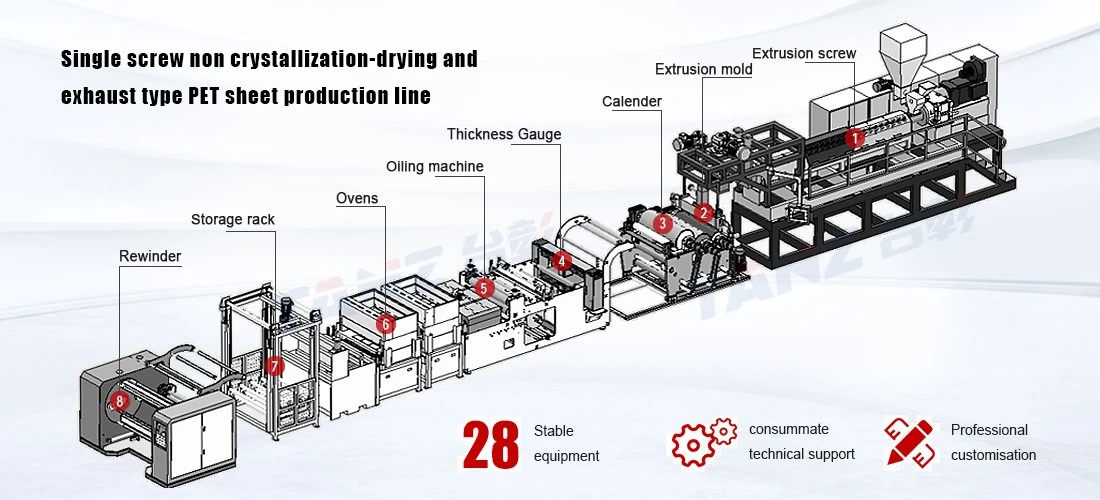

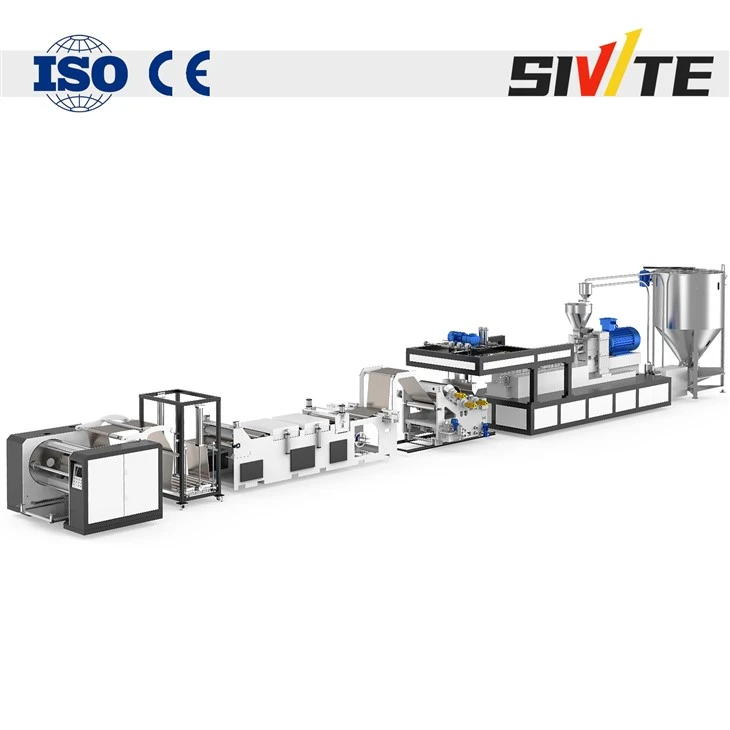

Single Screw PET Sheet Extrusion Line
Functional Features:
1.Adopt Taiwan's independently developed high-speed and high-capacity planetary exhaust screw. No crystallization drying required.
2. The forming part of the pressure roller is made of alloy steel with different thermal conductivity. Through special manufacturing technology and heat treatment process, the temperature of the roller is uniform, the heat dissipation speed of the rod surface is fast, the material does not stick to the roller, and the product molding speed is fast, which is suitable for high production capacity and high quality applications.
3.The thickness adjustment of the colliding machine sheet adopts an automatic adjustment system, and the mechanical roller has anti-collision protection function.
4.Electronic handwheel operation is used to achieve quick and easy single-sheet specification conversion without cumbersome operations. Sheet adjustment accuracy is as high as 0.005mm
5.The standard machine of the fully automatic sheet winding machine can roll up to 500 kilograms of sheet material with a diameter not exceeding 800mm. Winding machines with larger weight and diameter can also be customized. Our company has also developed an automatic winding machine, which can roll two rolls of sheets at the same time, with high production capacity.
Application Cases
1.PET plastic sheet has the characteristics of high transparency, non-toxic and odorless and environmentally friendly, and is especially suitable for easy recycling of PET in food packaging or other packaging fields. PET is currently an ideal thermoforming packaging material and is widely used in suction packaging, food packaging,hardware packaging, pharmaceutical packaging, electronic white packaging and other fields.
2.However, during the extrusion process, PET's hygroscopic properties may reduce product quality. The single-screw model has efficient vacuum exhaust capability. The biggest advantage over twin-screw extrusion equipment is that the planetary exhaust screw combination structure effectively reduces the viscosity loss ofPET resin and maintains the original toughness of the original sheet.
Equipment parameters
| Model |
Applicable Material (Adapt to materials) |
Screw spec |
sheet thickness (Sheet thickness) |
Sheet width |
Production (Output) |
installed power (Installation power) |
| SWT-100 | PET,PP,PS,PE,PLA | single screw | 0.15~2.0 (mm) | ≤850(mm) | 200~300(kg/h) | 210(kw) |
| SWT-120 | PET,PP,PS,PE,PLA | 0.15~2.0 (mm) | ≤850(mm) | 400~500(kg/h) | 250(kw) | |
| SWT-130 | PET,PP,PS,PE,PLA | 0.15~2.0 (mm) | ≤850(mm) | 600~700(kg/h) | 435(kw) | |
| SWT-150 | PET,PP,PS,PE,PLA | 0.15~2.0 (mm) | ≤850(mm) | 800~1000(kg/h) | 460(kw) | |
| SWT-120/65 | PET,PP,PS,PE,PLA | 0.15~2.0 (mm) | ≤850(mm) | 550~650(kg/h) | 310(kw) | |
| SWT-150/70 | PET,PP,PS,PE,PLA | 0.15~2.0 (mm) | ≤850(mm) | 800~1000(kg/h) | 365(kw) |
Equipment Features
Details control

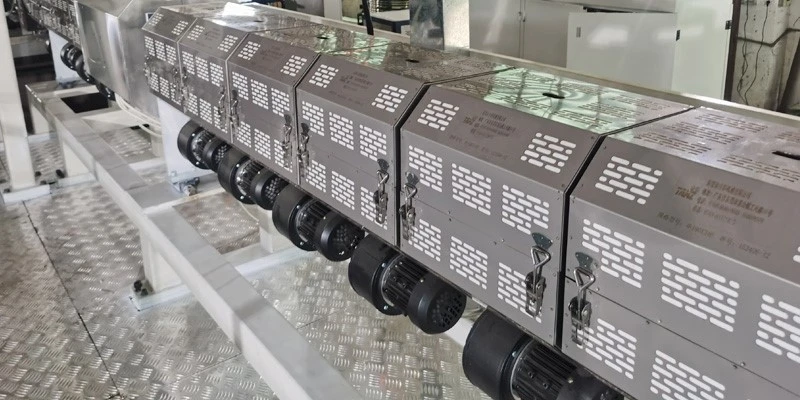

Drying-free exhaust type planetary screw
It has the advantages of forced feeding, high speed, high production capacity and high quality. It is suitable for more than 80% of the recycled materials, maintaining the original toughness of the materials, and is also suitable for PP HIPS PLA....

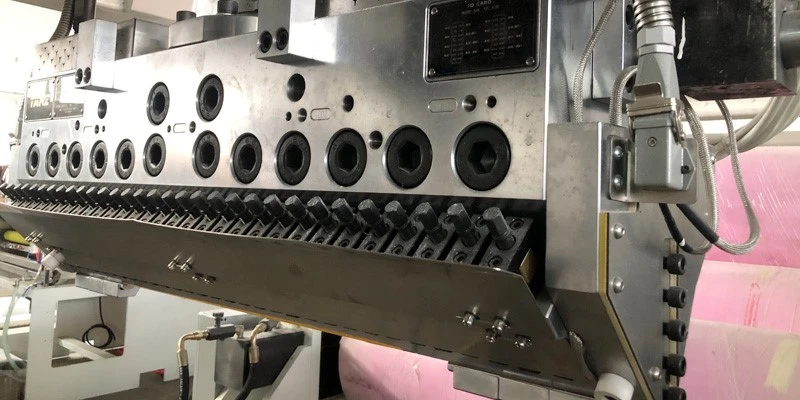

Taiwan imported extrusion die
The extrusion die is made of all-alloy steel, and the runner is chrome-plated and polished, allowing the width of the die to be adjusted at any time according to production needs without stopping the machine.

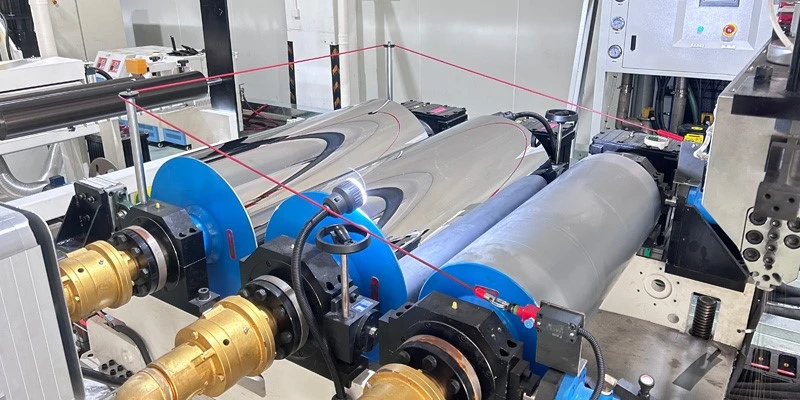

adjustment accuracy up to ± 0.005mm
three-roll calender is designed for horizontal, vertical or 45-degree tilt. The thickness is automatically adjusted, and the mechanical roller has anti-collision protection function. Using electronic handwheel operation.

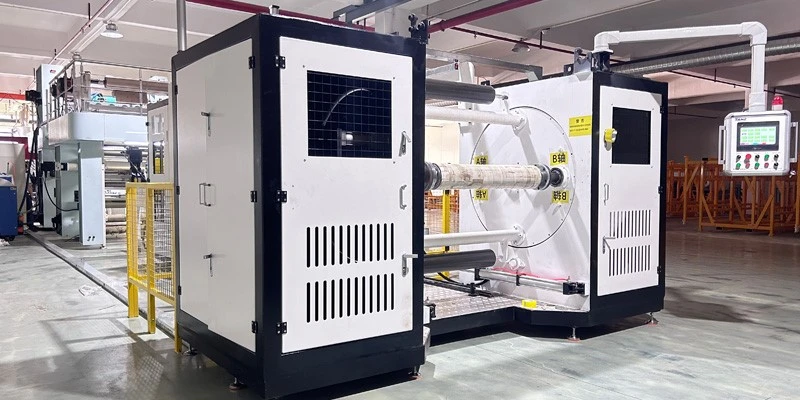

Automatic shaftless design
Multi-station full-automatic winding machine can be customized. The standard model can roll 500kg of sheet products with a diameter of no more than 800mm. It has the functions of automatic correction and roll change.

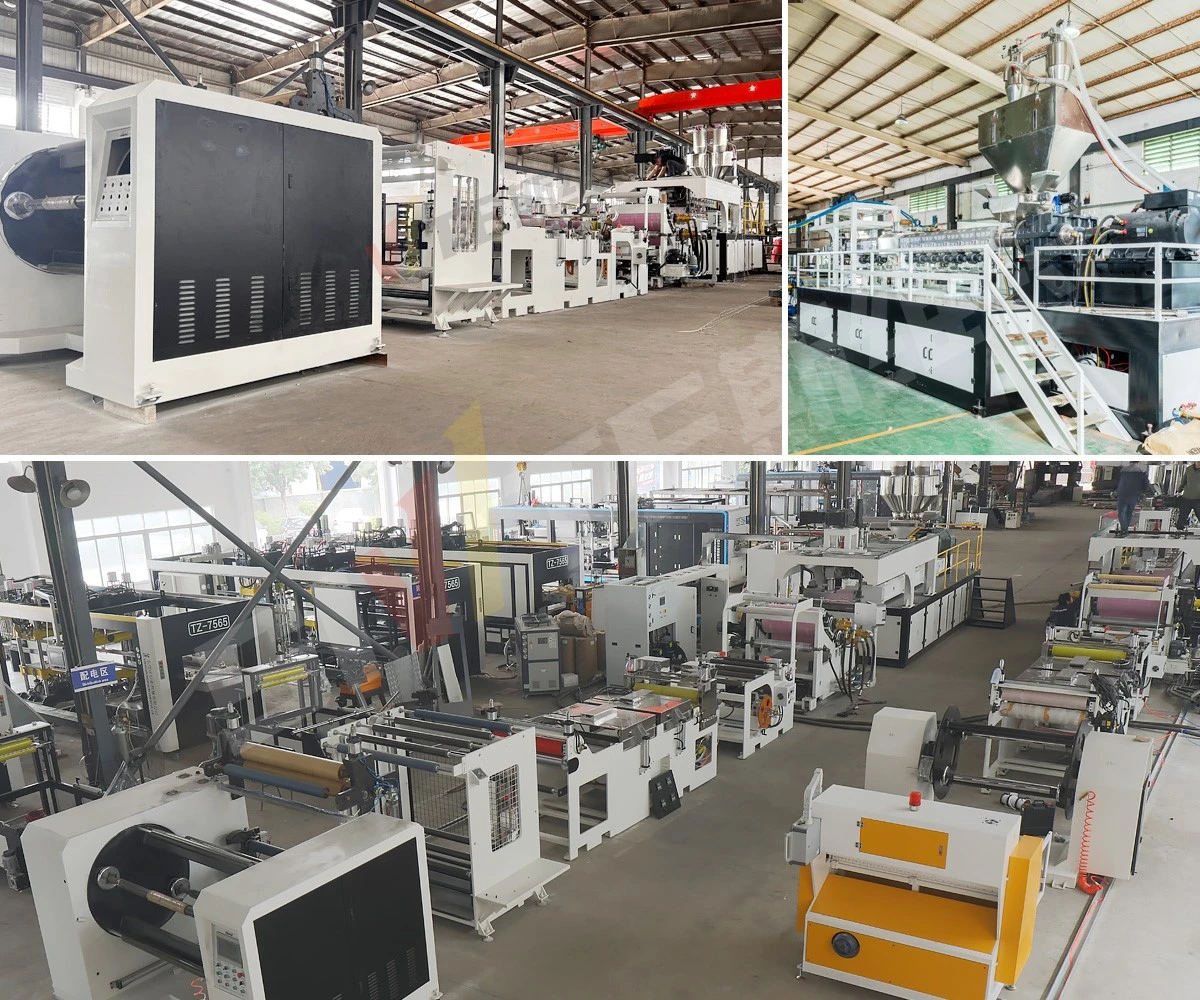

Production Capacity
