What Is A Thermoforming Machine?
A plastic sheet thermoforming machne is an industrial equipment used to shape plastic sheet into specific forms. Such PET Sheet,HIPS sheet,PP Sheet,PS sheet,PLA sheet,ect.

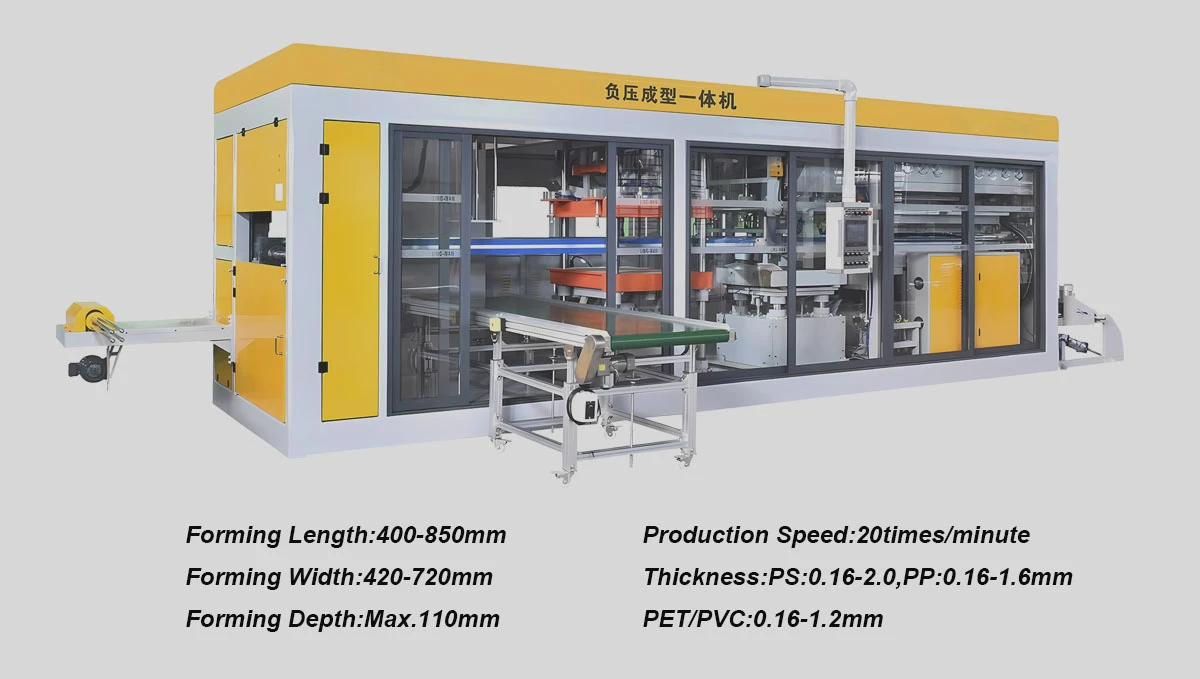

Taizhang Fully automatic three-station negative pressure thermoforming machine is a integrated machine with forming station,cutting station and stacking station.
> equiped aull servo drive,no noise, no vibration, good thermoforming,fast speed.
> the electric furnace temperature control system adoptes intelligent automatic cmpensation control and a one-time control regulator, which is easy to adjust the temperature evenly ,is esay to use,easy to operation, and heat up quickly. It can bake low-temperature slices up and down three times in the oven.
> PLC automatic cutting,automatic counting and automatic conveying.
> No effort needed,only 1-2 workers can pack it.
The plastic sheet thermoforming machine is widely suitable for thickness 0.15-0.2mm sheet thermoforming, such us PS HIPS PVC,PET,PP,GPET,etc.
Widely used for food container,electronic tray,fruit packaging tray,flower pot,seedling tray,ect.
Technical Parameter:
|
Name |
Specifications |
Remarks |
|
Forming length |
400mm-850mm |
|
|
Forming width |
420mm-720mm |
|
|
Forming Depth |
0-110mm |
|
|
Minimum and maximum thickness of material |
PS:0.16-2.0mm PP:0.16-1.6mm PET/PVC:0.16-1.2mm |
|
|
Using voltage |
380V 3N 50HZ |
Three-phase four-wire 50HZ |
|
Electric furnace rated voltage |
30KW |
Max 40-50KW |
|
Production speed |
3 seconds/mold |
20 mold/minutes |
|
Maximum punching pressure |
50tons |
|
|
Maximum cutting pressure |
50tons |
|
|
Molding machine withstands maximum pressure |
55tons |
|
|
Electric furnace heating area |
870mm*750mm |
84pcs heating bricks for upper and lower furnaces |
|
Machine host size |
Length 6500mm * Width 2150mm * Height 2800mm |
Three stations (forming, punching, stacking) |
|
Overall length of the machine |
8800mm |
Host, feeder, roll scrap machine |
|
Total machine weight |
9tons |
Host, feeder, roll scrap machine |
