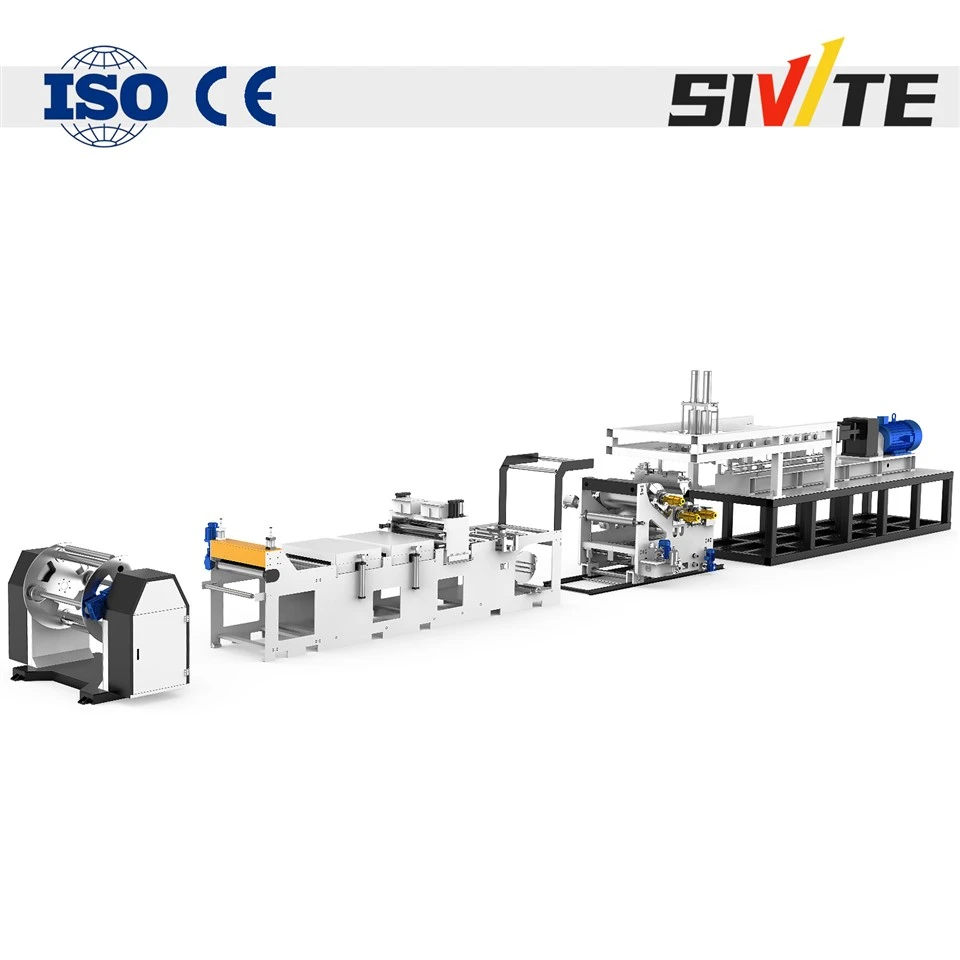

PP,PS Sheet Extrusion Line
PP,HIPS Sheet Extrusion Line · Introduction
>> PP, PS blister sheet:
PP, PS single-layer sheet, PP, PS co-extruded two-color sheet, PP double-sided high transparent sheet and other sheets used in the blister packaging industry.
>> PP stationery sheet:
PP transparent sheet, frosted sheet (coarse sand, fine sand), two-color sheet for stationery packaging industry sheet.
>> PP foam sheet:
PP foam sheet has unique advantages, with a density greater than 0.45 g/cm & sup3; The PP foam sheet has good bending resilience, is not easy to deform, and has broad application prospects in the field of folders. Density 0.6 g/cm & sup3; The PP foam sheet has good mechanical properties and has a very broad future in the field of automobile interior decoration, can be processed into carpet support materials, shading plates, sound insulation plates, luggage racks, interior decoration parts, covers, boxes, etc.; Density 0.3 g/cm & sup3; PP foam sheet has good flexibility and resilience, and is suitable for packaging, partition board and other fields.
>> PS conductive sheet:
Used in semiconductor electronics, computer communications and other products, especially in the requirements of dust-free, no static electricity, discharge protection and shielding electromagnetic wave/radio frequency interference accessories or equipment packaging.
Products Description
1.PET plastic sheet has the characteristics of high transparency, non-toxic and odorless and environmentally friendly, and is especially suitable for easy recycling of PET in food packaging or other packaging fields. PET is currently an ideal thermoforming packaging material and is widely used in suction packaging, food packaging,hardware packaging, pharmaceutical packaging, electronic white packaging and other fields.
2.However, during the extrusion process, PET's hygroscopic properties may reduce product quality. The single-screw model has efficient vacuum exhaust capability. The biggest advantage over twin-screw extrusion equipment is that the planetary exhaust screw combination structure effectively reduces the viscosity loss ofPET resin and maintains the original toughness of the original sheet.
Equipment parameters
| Model |
Applicable Material (Adapt to materials) |
Screw spec |
sheet thickness (Sheet thickness) |
Sheet width |
Production (Output) |
installed power (Installation power) |
| SWT-100 | PET,PP,PS,PE,PLA |
100 |
0.15~2.0 (mm) | ≤850(mm) | 200~300(kg/h) | 210(kw) |
| SWT-120 | PET,PP,PS,PE,PLA | 120 | 0.15~2.0 (mm) | ≤850(mm) | 400~500(kg/h) | 250(kw) |
| SWT-130 | PET,PP,PS,PE,PLA | 130 | 0.15~2.0 (mm) | ≤850(mm) | 600~700(kg/h) | 435(kw) |
| SWT-150 | PET,PP,PS,PE,PLA | 150 | 0.15~2.0 (mm) | ≤850(mm) | 800~1000(kg/h) | 460(kw |
| SWT120/65 | PET,PP,PS,PE,PLA | 120/65 | 0.15~2.0 (mm) | ≤850(mm) | 550~650(kg/h) | 310(kw) |
| SWT150/70 | PET,PP,PS,PE,PLA | 150/70 | 0.15~2.0 (mm) | ≤850(mm) | 800~1000(kg/h) | 365(kw) |

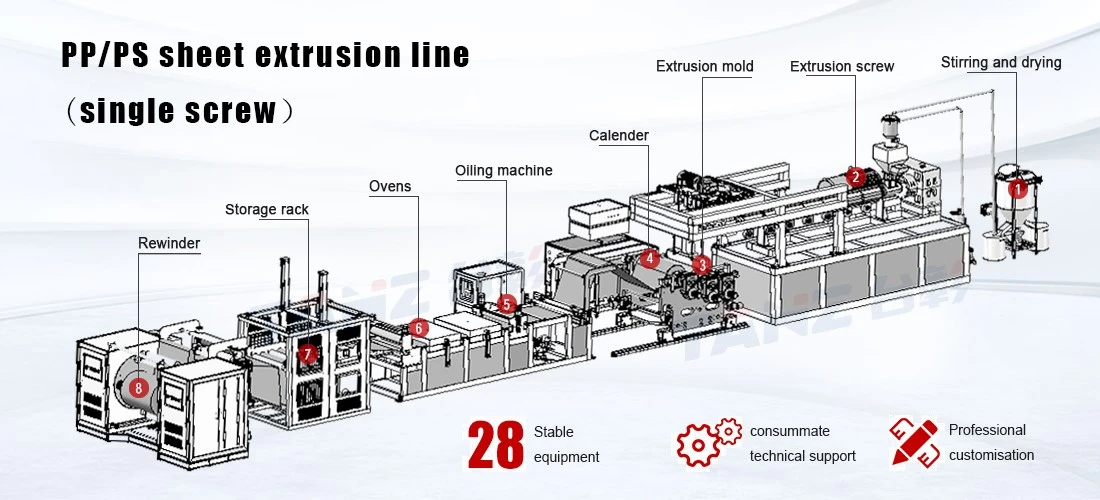

Equipment Features
Details controls
Drying-free exhaust type planetary scre
It has the advantages of forced feeding, high speed, high production capacity and high quality. It is suitable for more than 80% of the recycled materials, maintaining the original toughness of the materials, and is also suitable for PP HIPS PLA....
Taiwan imported extrusion die
The extrusion die is made of all-alloy steel, and the runner is chrome-plated and polished, allowing the width of the die to be adjusted at any time according to production needs without stopping the machine.
adjustment accuracy up to ± 0.005mm
three-roll calender is designed for horizontal, vertical or 45-degree tilt. The thickness is automatically adjusted, and the mechanical roller has anti-collision protection function. Using electronic handwheel operation.
Automatic shaftless design
Multi-station full-automatic winding machine can be customized. The standard model can roll 500kg of sheet products with a diameter of no more than 800mm. It has the functions of automatic correction and roll change.
Production Capacity
